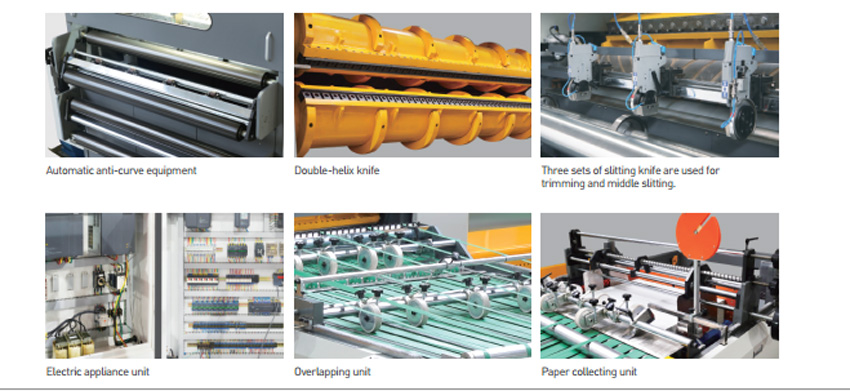

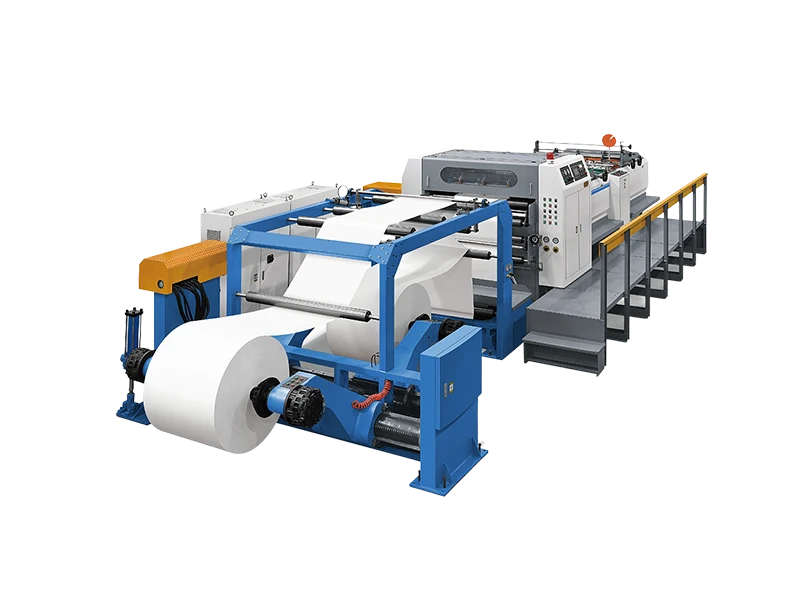

EXTSM-1100/1400/1700/1900 Servo Precision Double-Helix High Speed Sheet Cutter Machine apply the advanced technique, combining with the rich experience and leading manufacturing techniques of our senior engineers to build and launch a new generation of sheet cutter equipment. This machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what's more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. It is the most popular and ideal cutting machine in paper making and printing industry at present.
Technical Parameters
Model | TSM110/140/170/190 | Cutting Length | Speed | Speed |
Model of cutting paper | Double rotary sheeter | (mm) | (m/min) | (cuts/min) |
Thickness of cutting paper | 60-1000gsm | 450 | 100 | 210 |
Cutting length range | 450-1450mm(S110)/450-1600mm(S140/170/190) | 500 | 110 | 220 |
Cutting precision | Cutting length≤1000mm:±0.2mm | 600 | 155 | 260 |
Cutting length>1000mm:±0.1% | 700 | 230 | 320 | |
Max.cutting meter speed | 300m/min | 800 | 300 | 380 |
Max.scroll diameter | 1500mm(SM-1100)/1800mm(SM-1400/1700/1900) | 900 | 300 | 345 |
Max.paper cutting width | 1100(45")mm | 1000 | 300 | 300 |
1400(55")mm | 1100 | 290 | 265 | |
1700(67")mm | 1200 | 280 | 235 | |
1900(75")mm | 1300 | 260 | 210 | |
Max.paper piling height | 1300mm(S110)/1500mm(S140/170/190) | 1400 | 260 | 190 |
The request for air compressor | 0.8Mpa | 1500 | 260 | 175 |
Power consumpxion | 380V/220V×50Hz | 1600 | 250 | 160 |
G.W. | 12000/160000/18000/20000kgs |
